Electric system
|
|
|
|
|
|
|
Motor
|
48V 500W or 750w Rear wheel motor (Green Pedel )
|
|
|
|
|
|
Controller
|
48V controller
|
|
|
|
|
|
Battery
|
48V lithium battery(48v 16A and 48v 11.6A)
|
|
|
|
|
|
Charger
|
54.6V 2A charger
|
|
|
|
|
|
Throttle
|
Thumb throttle
|
|
|
|
|
|
PAS
|
12 Magnetic pedal assist sensor
|
|
|
|
|
|

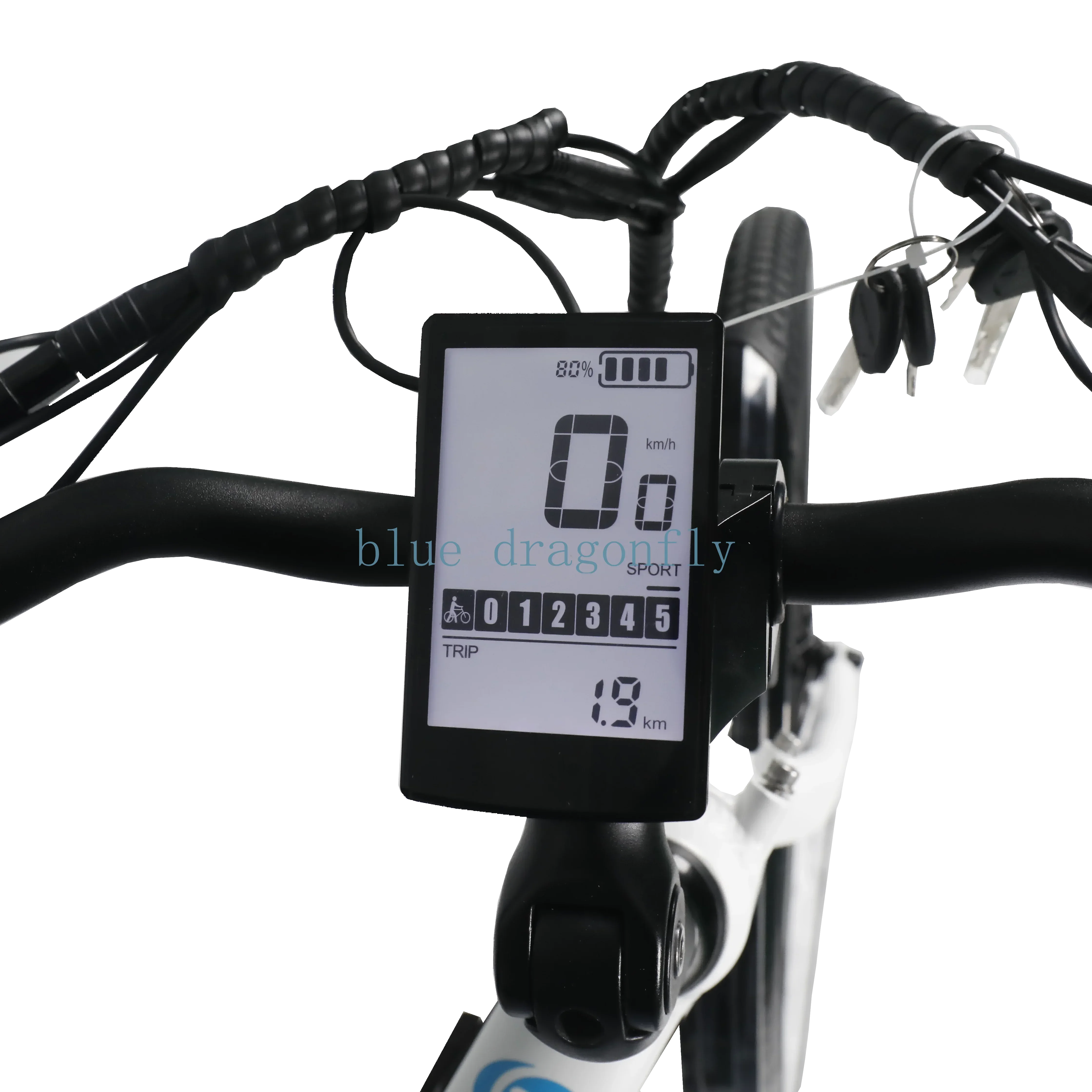

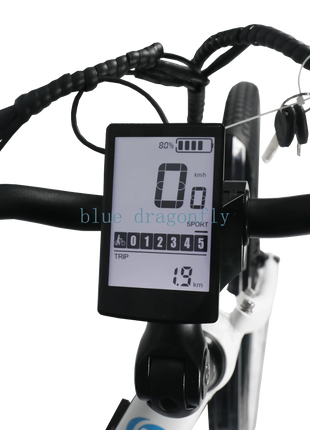

Display
|
LCD display
|
|
|
|
|
|
Head Light
|

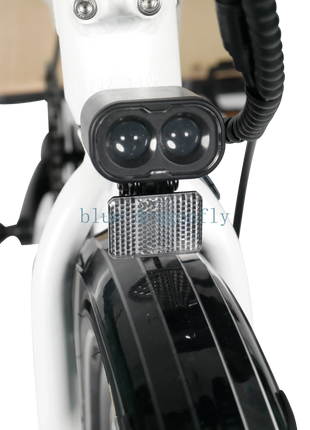

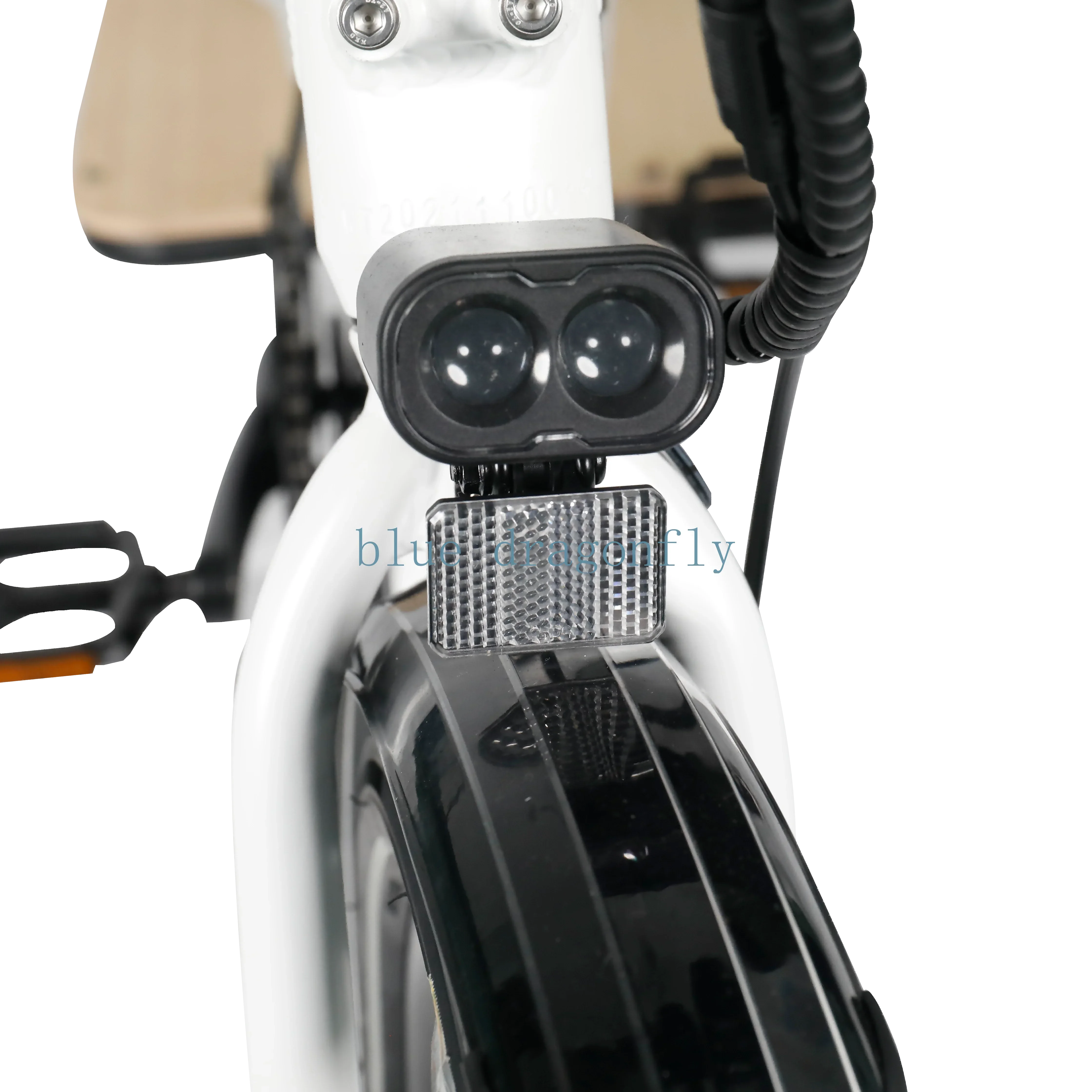

LED headlight
|
|
|
|
|
|

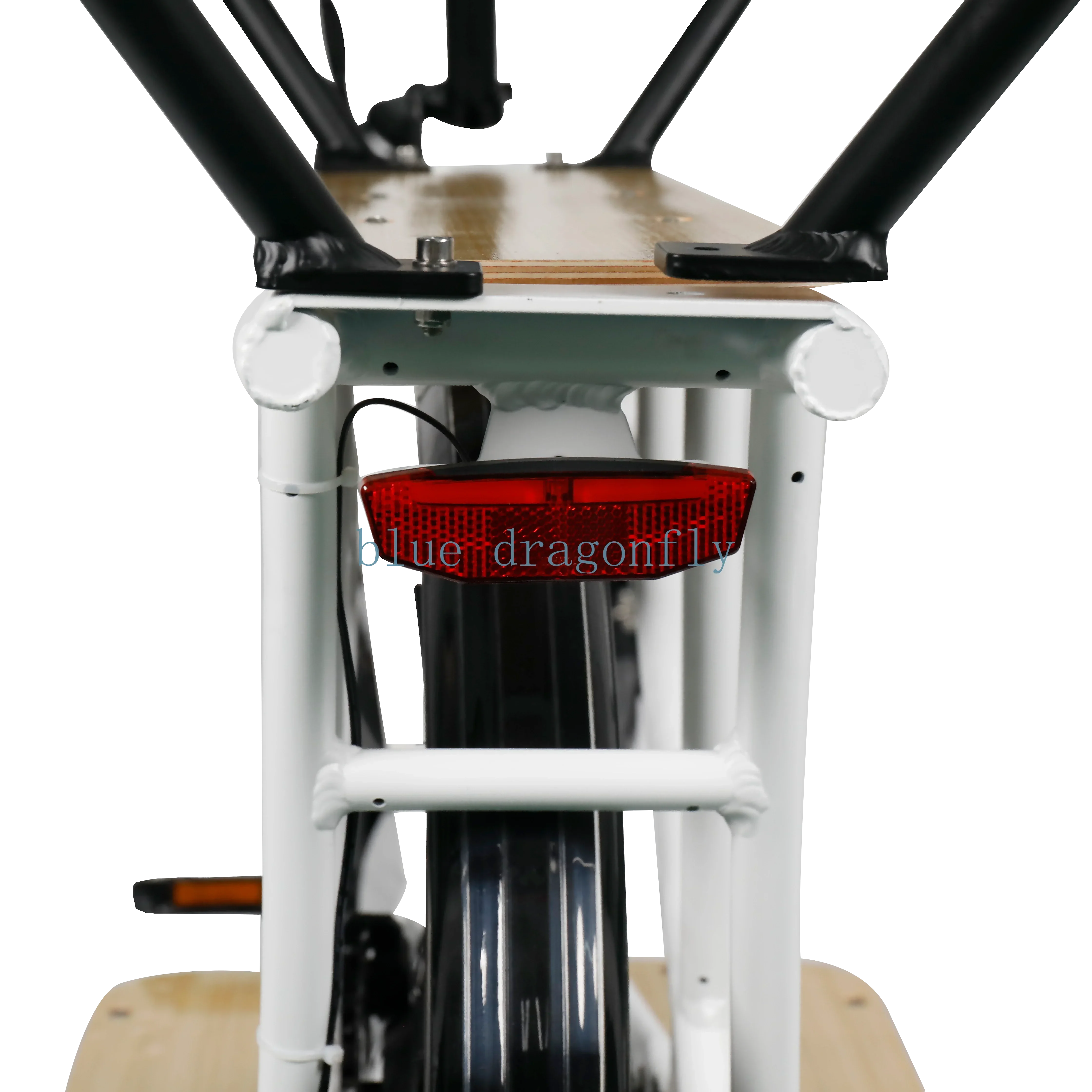

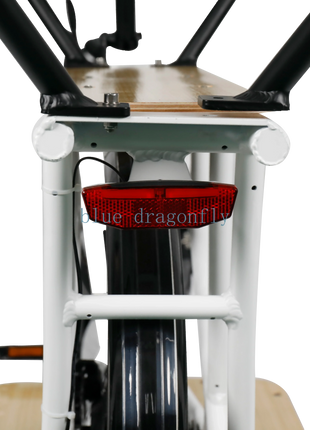

Taillight
|
LED taillight with brake light function
|
|
|
|
|
|
Cable
|
Quick release waterproof cable
|
|
|
|
|
|
Mechanical part
|
|
|
|
|
|
|
Frame
|
Aluminium Alloy 6061 frame
|
|
|
|
|
|
Handlebar
|
Aluminium Alloy 6061
|
|
|
|
|
|
Stem
|
Aluminium Alloy 6061 adjustable
|
|
|
|
|
|
Ring
|
Black ring
|
|
|
|
|
|
Grips
|
Black Silicone grips
|
|
|
|
|
|
Front Fork
|
Steel Fork
|
|
|
|
|
|
Rim
|
24" AL-ALLOY 6061 Double Wall
|
|
|
|
|
|
Tire
|
24*2.4 black color with reflective strip
|
|
|
|
|
|
Mudguard
|
Front and rear mudguards
|
|
|
|
|
|
Saddle
|
Black Thick and comfortable soft saddle
|
|
|
|
|
|
Seat Post
|
AL-ALLOY 6061
|
|
|
|
|
|
Chainwheel
|
46 teeth steel
|
|
|
|
|
|
Crank
|
ALLOY 6061
|
|
|
|
|
|
Pedals
|
AL-ALLOY Pedals
|
|
|
|
|
|
Chain
|
7 speeds anti-rust chain
|
|
|
|
|
|
Freewheel
|
MF-TZ500-6,6-SPEED, 14-16-18-21-24-28T (SHIMANO)
|
|
|
|
|
|
Front Derailleur
|
/
|
|
|
|
|
|
Shifter
|
SL-RS45-6R 6-SPEED(SHIMANO)
|
|
|
|
|
|
Rear Derailleur
|
RD-FT35 6/7-SPEED(SHIMANO)
|
|
|
|
|
|
Brake Lever
|
GA-1000 Hydraulic disc brakes with sensor
|
|
|
|
|
|

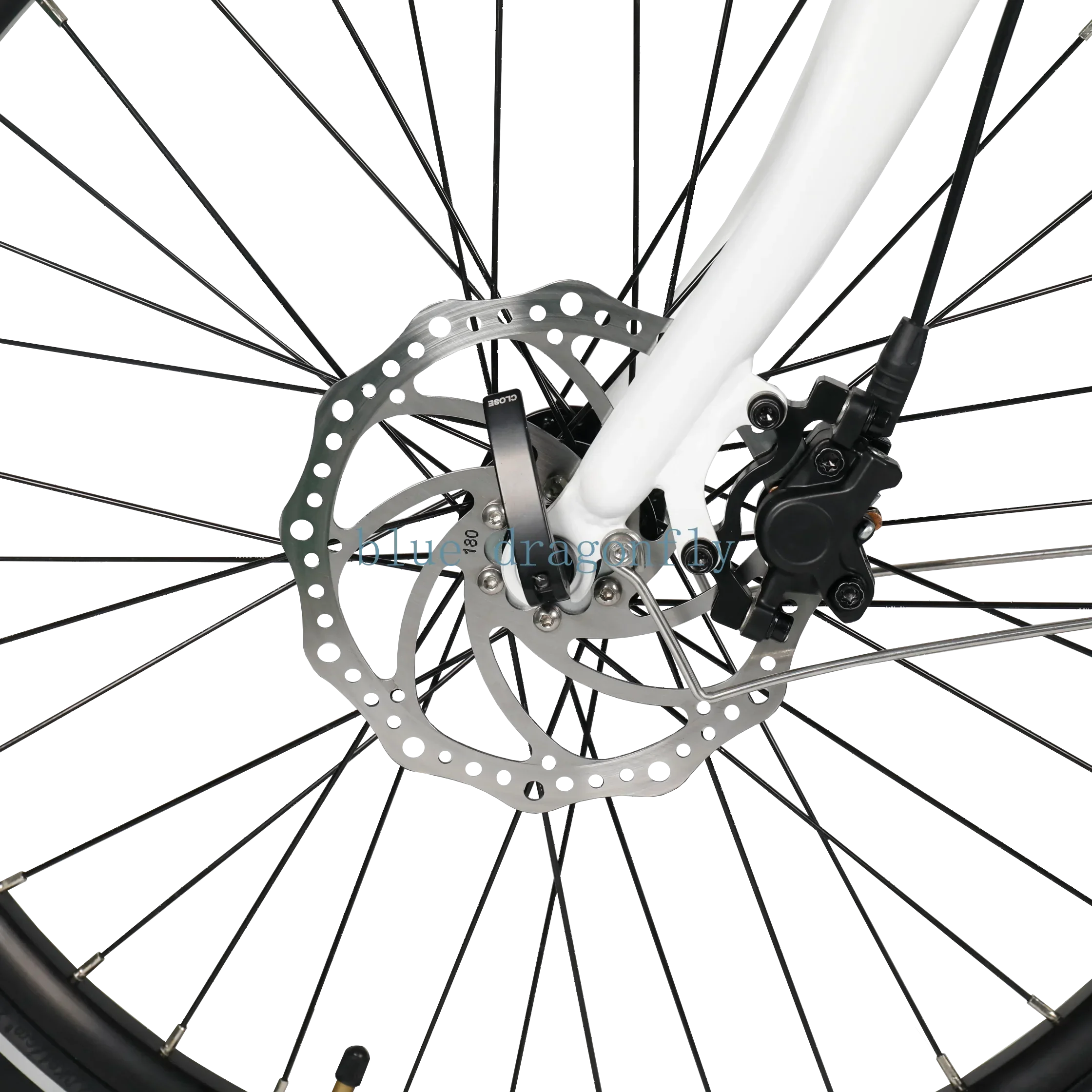

Brake System
|
GA-1000 Hydraulic disc brake system
|
|
|
|
|
|
Rear Carrier
|
Aluminum integrated carrier with frame
|
|
|
|
|
|
Performance+Packing
|
|
|
|
|
|
|
Max speed
|
EU:25km/h, USA:32km/h
|
|
|
|
|
|
Max Torque
|
55N.m
|
|
|
|
|
|
Range per charger
|
Throttle:35-40km PAS:60-65Km
|
|
|
|
|
|
Charging time
|
6-6.5H
|
|
|
|
|
|
Max Load
|
130kg
|
|
|
|
|
|
Max Load(Rear rack)
|
50kg
|
|
|
|
|
